HTN04-60x15-8.5mm Neodymium Countersunk Pot Magnet with Ni-Cu-Ni Coating

Name: HTN0460x1585mm Neodymium Countersunk Pot Magnet with NiCuNi Coating
Brand: U-POLEMAG
Price: 15.00 USD

Quality HTN04-60x15-8.5mm Neodymium Countersunk Pot Magnet with Ni-Cu-Ni Coating wholesale

Place of Origin : Fujian, China

Brand Name : U-POLEMAG

Model Number : HTN04-60

Type : Permanent

Composite : Neodymium Magnet

Shape : Pot / Cup Shape

Application : Industrial Magnet

Tolerance : ±0.1mm

Grade : NdFeB

Delivery Time : 22-30 days

Name : D60x15-8.5mm Neodymium countersunk pot magnet

Size : D60x15x8.5mm

Coating : Ni-Cu-Ni

Magnet Type : NdFeB

Material : Fe37

Pull Force : 130KG

Processing : Sintered

tolerance : +/-0.05mm

Accessories : Countersunk head screw

Payment : T/T,Western Union,Paypal

Port : XIAMEN

Price : $15.00/pieces 1-499 pieces

Contact Now

Product Description

Product Name	Neodymium countersunk pot magnet
Material	Fe37
Size	D60x15-8.5mm
Pull Force	130kg
Magnet Type	NdFeB
Brade	Rock
Accessories	Flush Screw
Logo	Support laser printing

Products Show

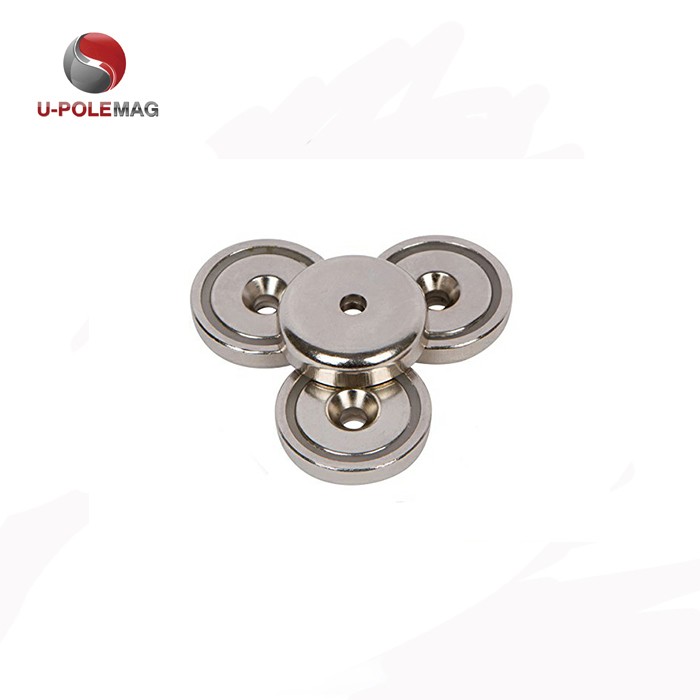

HTN04-60x15-8.5mm Neodymium Countersunk Pot Magnet with Ni-Cu-Ni Coating

NdFeB magnet, the third generation of rare-earth permanent magnet, is the most powerful and advanced permanent magnet today.

A neodymium countersunk pot magnet is a pot magnet with a countersunk hole on its magnetic face. The countersunk hole allowing the magnet to be attached to a surface with a countersunk screw once attached, the screw should sit flush with the surface of the magnet.

When choosing a countersunk pot magnet, the most important considerations are the diameter and the depth. This is due to the effects these will have on the attachment of the countersunk pot magnet to a non-ferromagnetic material.The countersunk hole allowing the magnet to be attached to a surface with a countersunk screw once attached, the screw should sit flush with the surface of the magnet.

The larger the diameter, the greater the area of ferromagnetic material the magnet can hold onto. The depth, on the other hand, is dictated by the depth of material you are using.

Because of the lack of moving parts and the robust construction of pot magnets, the life is unlimited and no maintenance is required. Just keeping the pole surface clean guarantee reliable operation and a long life.

Magnet design drawings

1.The two holes are different in size, and the largest hole is like a Horn.

Working principle of magnet

2. Products are mainly divided into three parts: Magnets/Countersunk hole/Flush countersunk screw.

Magnet lock flush screw

3. The magnet lock flush screw is fixed in the place you want to fix.

Application

4. Applications include jigs and fixtures, lighting holders, marketing and exhibition displays,industrial fixings, etc.
